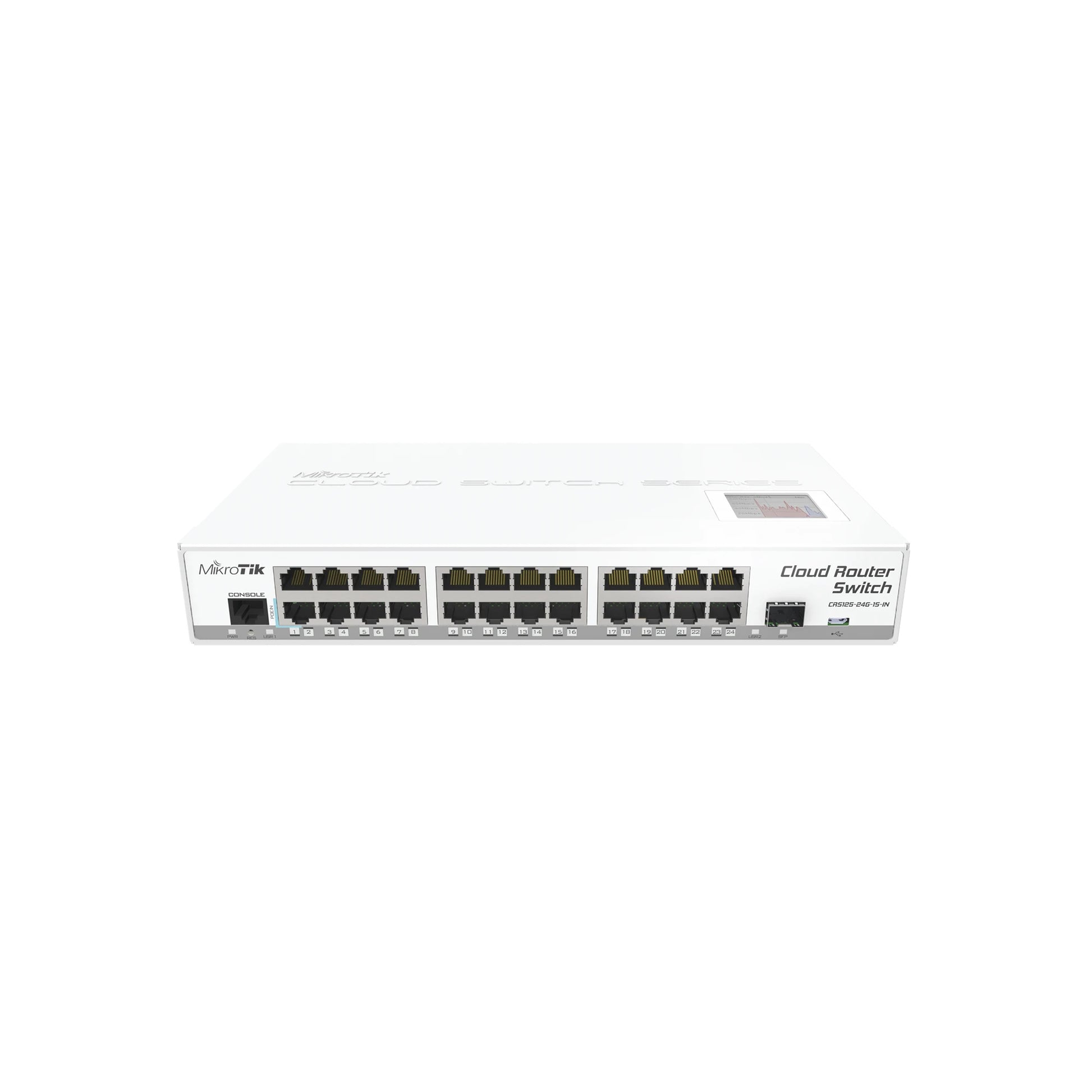

CRS125-24G-1S-IN

Cloud Router Switch es nuestra nueva serie Smart Switch. Combina las mejores características de un router totalmente funcional y un conmutador de capa 3, es alimentado por el RouterOS. Todas las opciones de configuración del switch específicos están disponibles en un menú especial, pero si lo desea, los puertos pueden ser retirados de la configuración del switch, y se utilizan con fines de enrutamiento.

Elija los puertos de conmutación de velocidad de cable, o para fines de enrutamiento.

Perfecta SOHO router, switch, todo en una caja:
• Ethernet, fibra, o 4G (con módem USB opcional) Conexión de la puerta de enlace a Internet
• RouterOS gateway / firewall / router VPN con refrigeración pasiva
• hasta veinte y cinco puertos de conmutación Gigabit ( 1xSFP y 24xRJ45)

La caja incluye: Interruptor, recinto de escritorio, fuente de alimentación de la nube Router



Product code	CRS125-24G-1S-IN
10/100/1000 Ethernet ports	24
Architecture	MIPS-BE
CPU	AR9344
CPU core count	1
CPU nominal frequency	600 MHz
Dimensions	285x145x45mm
License level	5
Max Power consumption	15W
Number of USB ports	1
Operating System	RouterOS
PCB temperature monitor	Yes
PoE in	Yes
Power Jack	1
SFP DDMI	Yes
SFP ports	1
Serial port	RJ45
Size of RAM	128 MB
Storage size	128 MB
Storage type	NAND
Supported input voltage	8 V - 28 V
Tested ambient temperature	-35C to +65C tested
USB Power Reset	Yes
USB slot type	microUSB type AB
Voltage Monitor	Yes

Included parts















































Switching results

CRS125-24G-1S-IN
Mode	Configuration	64 byte		512 byte		1518 byte
		kpps	Mbps	kpps	Mbps	kpps	Mbps
Switching	Non blocking Layer 2 throughput	37,202.4	19,047.6	5,874.1	24,060.2	2,031.9	24,674.9
Switching	Non blocking Layer 2 capacity	37,202.4	38,095.2	5,874.1	48,120.3	2,031.9	49,349.8
Switching	Non blocking Layer 1 throughput	37,202.4	25,000.0	5,874.1	25,000.0	2,031.9	25,000.0
Switching	Non blocking Layer 1 capacity	37,202.4	50,000.0	5,874.1	50,000.0	2,031.9	50,000.0

Ethernet test results

CRS125-24G-1S-IN		AR9344 1G all port test
Mode	Configuration	1518 byte		512 byte		64 byte
		kpps	Mbps	kpps	Mbps	kpps	Mbps
Bridging	none (fast path)	81.0	983.7	232.0	950.3	269.6	138.0
Bridging	25 bridge filter rules	81.0	983.7	86.0	352.3	87.6	44.9
Routing	none (fast path)	81.0	983.7	210.0	860.2	226.9	116.2
Routing	25 simple queues	81.0	983.7	103.9	425.6	106.6	54.6
Routing	25 ip filter rules	56.8	689.8	59.6	244.1	60.5	31.0

1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
3. Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
4. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
