SWITCH ADMINISTRABLE CAPA 3 / 48 PUERTOS 10/100 MBPS / 4 SFP GIGABIT / 17.6 GBPS / 13.09 MPPS [AT-FS980M/52-10]
SWITCH ADMINISTRABLE CAPA 3 / 48 PUERTOS 10/100 MBPS / 4 SFP GIGABIT / 17.6 GBPS / 13.09 MPPS [AT-FS980M/52-10]
Lo más destacado:
- Ocho colas de prioridad QoS
- Autenticación 802.1x, MAC y Web
- IGMP snooping v1, v2 y v3
Agotado
Otras opciones similares:
No se pudo cargar la disponibilidad de recolección
Descripción
Descripción

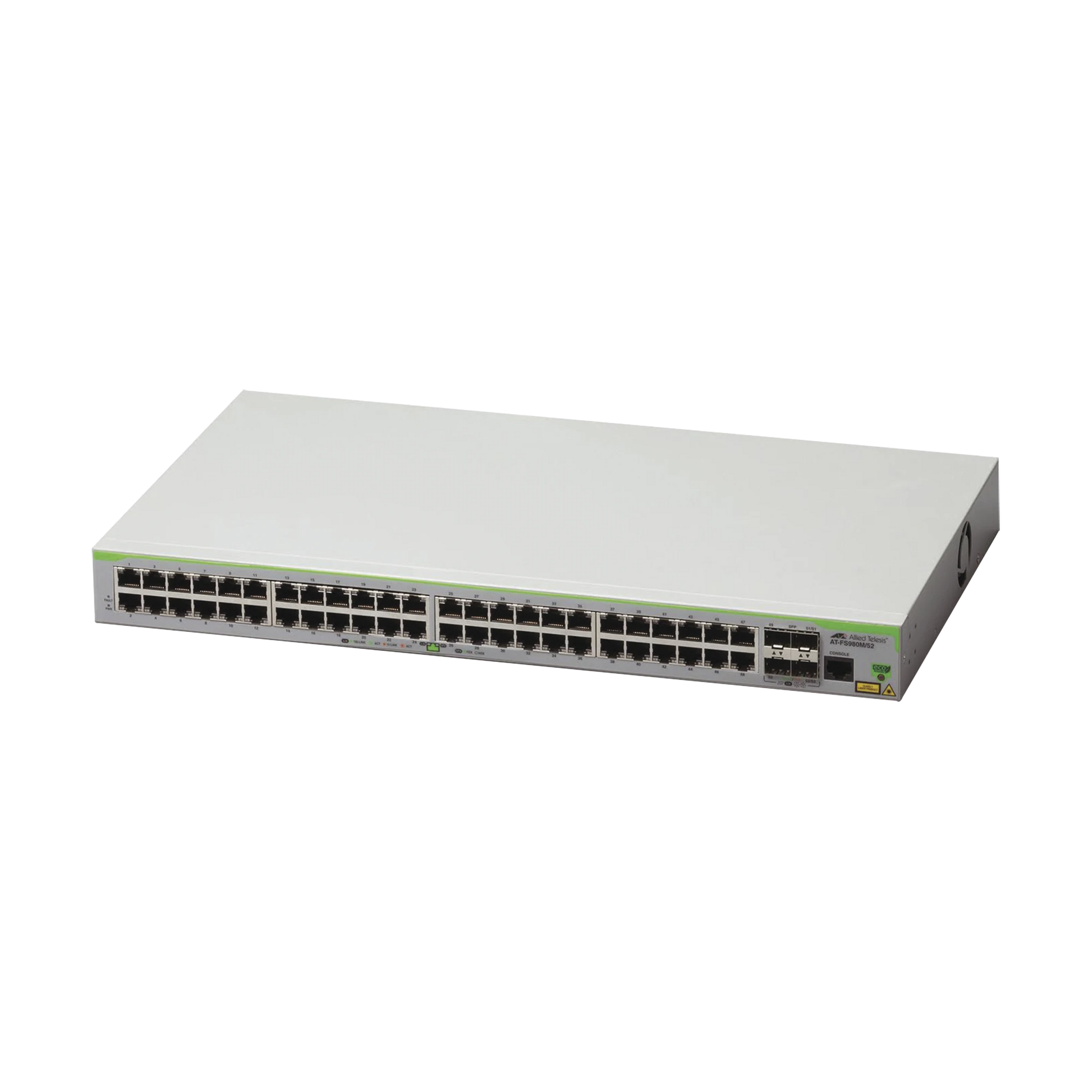

Switch administrable capa 3 de la marca Allied Telesis, modelo AT-FS980M/52-10. Le ayuda a que su red quede ordenada y funcionando como usted la necesita.
- Puertos: 48 puertos 10/100 Mbps; 4 puertos SFP Gigabit.
- Administración: Interfaz de línea de comandos (CLI); Interfaz gráfica de usuario (GUI); Telnet; SSH; Monitoreo SNMP v1, v2c & v3.
- Access Control Lists (ACLs) basadas en Capa 2, 3 y 4.
- Características de IPv6.
- Eco-friendly con el medio ambiente.
- Soporte de autenticación IEEE 802.1x / MAC / Web.
- Soporte de Multicast - IGMP snooping (IGMPv1, v2 and v3).
- Storm protection.
- Bridge Protocol Data Unit (BPDU) protection.
- Tri-authentication.
- QoS (Quality of Service): Ocho colas de prioridad; Limite de ancho de banda por puerto; Clasificación de tráfico con baja latencia.
- Características de redundancia: Ethernet Protection Switched Ring (EPSRing); Loop protection; Link Aggregation; Spanning Tree Protocol (STP); Multiple Spanning Tree Protocol (MSTP); Rapid Spanning Tree Protocol (RSTP); Funciones de capa 3 soportadas:; Ruteo estático; RIP.
- 1 año, para un año adicional registra el producto en el siguiente link:
- http://www.alliedtelesis.com/support/maintenance-and-warranty/register
- Panel Frontal del switch FS980M/52.
Consejo del instalador
Planee la ubicación pensando en la ventilación y en el orden del cableado, y etiquete cada cable; le ahorrará tiempo en cualquier mantenimiento futuro.
Especificaciones técnicas
| Modelo | AT-FS980M/52-10 |
| Marca | Allied Telesis |
| Sistema Operativo | AlliedWare Plus™. |
| Forwarding rate | 13.09 Millones de paquetes por segundo (Mpps). |
| Switching fabric | 17.6 Gbps. |
| Alimentación | 100-240 VAC, 50-60 Hz. |
| Dimensiones | 43.2 x 440 x 257 mm. |
| Peso | 3.4 kg. |
| Temperatura de Operación | 0 a 50° C. |

http://www.alliedtelesis.com/support/maintenance-and-warranty/register
Especificaciones
Especificaciones
Nombre: SWITCH ADMINISTRABLE CAPA 3 / 48 PUERTOS 10/100 MBPS / 4 SFP GIGABIT / 17.6 GBPS / 13.09 MPPS [AT-FS980M/52-10]
Fabricante: ALLIED TELESIS
Calificación:
Identificador del producto: AT-FS980M/52-10
Código fiscal: 43222600
Peso kg:
Garantía de fábrica: 3 años
Admite devoluciones: Si
